IPX1 and IPX2 Drip Box as per IEC 60529 Edition 2.2 2013-08
IPX 1 and 2 are the tests to simulate the water droplets caused from false ceiling, Air conditioner Ducts etc.
| Test Name | Brief Description | Test Means | Water Flow Rate | Duration |
| IPX 1 | Protected against vertically falling water drops | Drip box Enclosure on turntable | 1+ 00,5 mm/min | 10 min |
| IPX 2 | Protected against vertically falling water drops when enclosure tilted up to 15° | Drip box In 4 fixed positions of 15° tilt | 3+ 00,5 mm/min | 2,5 min for each position of tilt |
We have made Drip Box in the Sizes of 600 x 600 mm, 800 x 800 mm, 1000 x 1000 mm, 1500 x 1500 mm, 2500 x 1500 mm and we can develop to any sizes.

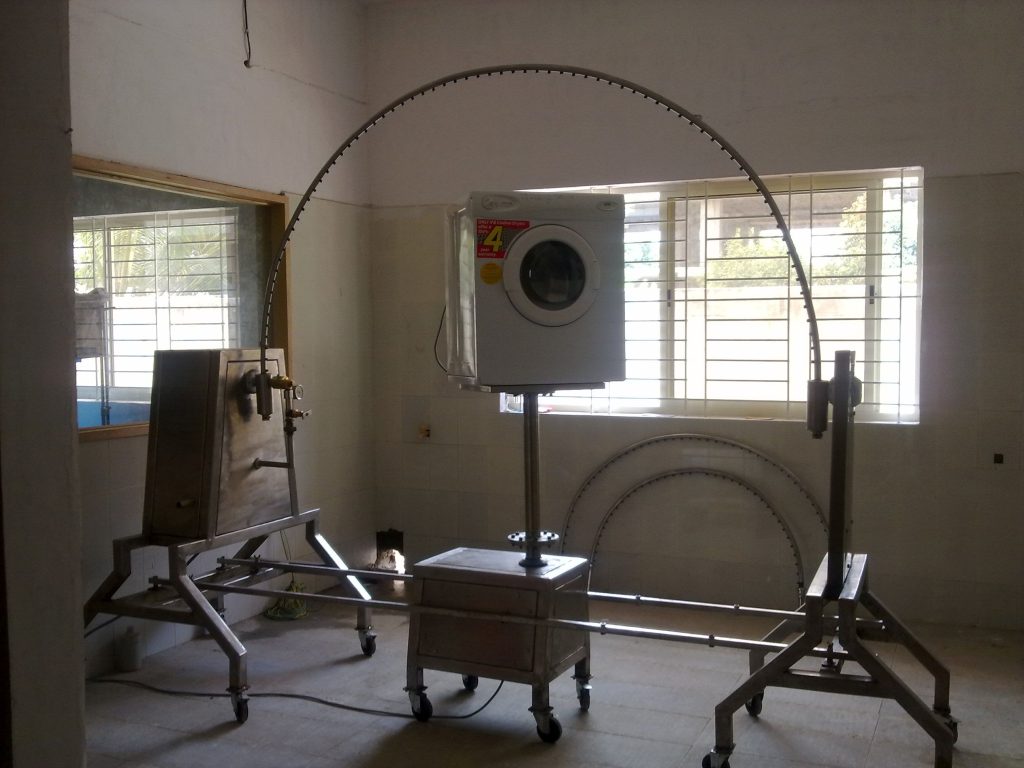

IPX3 and IPX4 Oscillating tube as per IEC 60529 Edition 2.2 2013-08
IPX 3 and 4 are the tests to simulate the water spray caused from normal rain.
| Test Name | Brief Description | Test Means | Water Flow Rate | Duration |
| IPX3 | Protected against spraying water | Oscillating tube Spray ± 60° from vertical, distance max. 200 mm | 0,07 l/min ± 5 % per hole, multiplied by number of holes | 10 min |
| IPX4 | Protected against splashing water | As for numeral 3 Spray ± 180° from vertical | As for numeral 3 |
| Tube Radius | Degree IPX3 | Degree IPX4 | ||
|---|---|---|---|---|
| Number of open holes N1 | Total water flow l/min | Number of open holes | Total water flow l/min | |
| 200 | 8 | 0,56 | 12 | 1,8 |
| 400 | 16 | 1,1 | 25 | 0,84 |
| 600 | 25 | 1,8 | 37 | 2,6 |
| 800 | 33 | 2,3 | 50 | 3,5 |
| 1000 | 41 | 2,9 | 62 | 4,3 |
| 1200 | 50 | 3,5 | 75 | 5,3 |
| 1400 | 58 | 4,1 | 87 | 6,1 |
| 1600 | 67 | 4,7 | 100 | 7,0 |

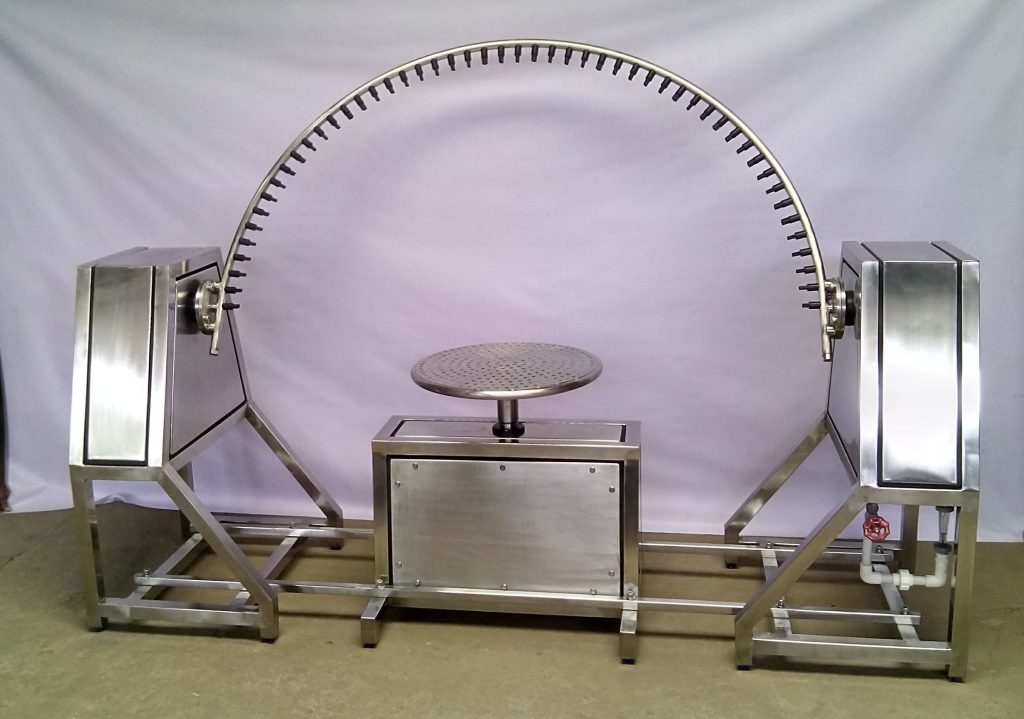

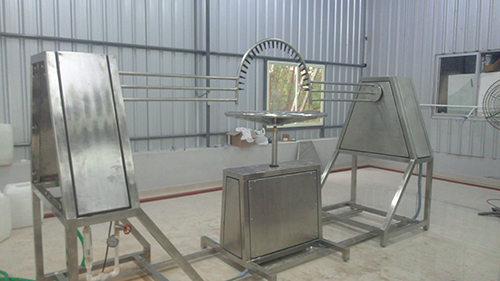

We have developed the Oscillating Tube with innovative non clogging Nozzles and professionally designed structures in SS 304 material. Different types of designs in all standard radius are developed.
IPX5 and IPX6 Water Jet Nozzles as per IEC 60529 Edition 2.2 2013-08
IPX 5 and 6 are the tests to simulate the water Jets caused from heavy rain and high pressure cleaning.
| Test Name | Brief Description | Test Means | Water Flow Rate | Duration |
| IPX5 | Protected against water jets | Water jet hose Nozzle 6,3 mm diameter, distance 2,5 m to 3 m | 12,5 l/min ± 5 % | 1 min/m² at least 3 min |
| IPX6 | Protected against powerful water jets | Water jet hose Nozzle 12,5 mm diameter, distance 2,5 m to 3 m | 100 l/min ± 5 % | 1 min/m² at least 3 min |

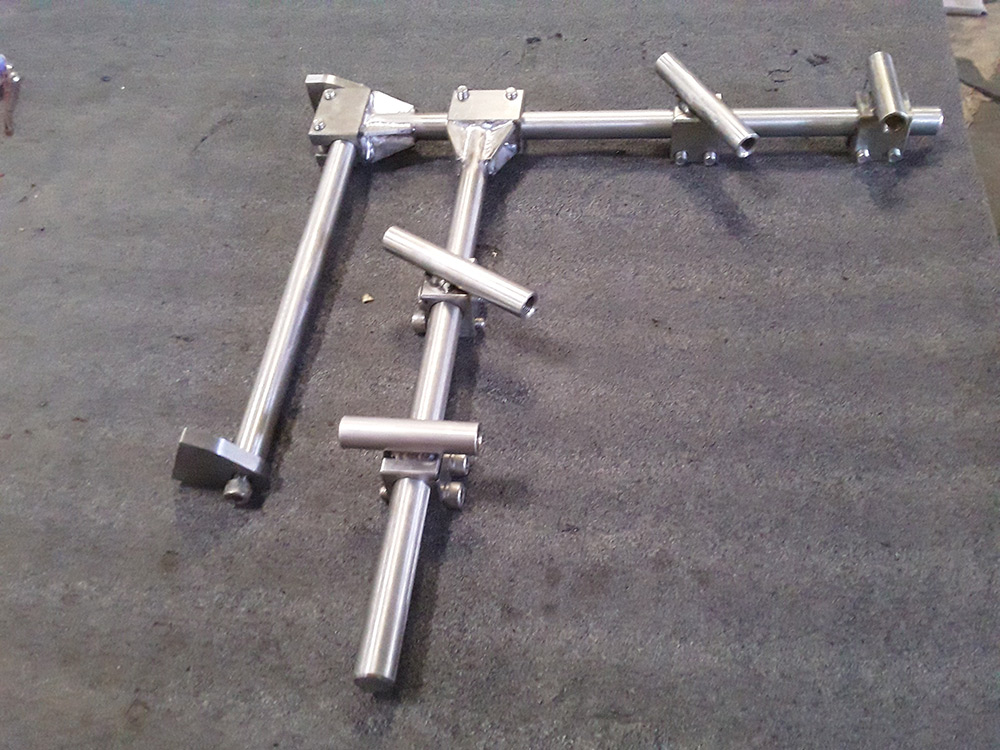

We have developed the replaceable water jet Nozzles with professionally designed structures in SS 304 material.
IPX9 Water Jet Nozzles as per IEC 60529 Edition 2.2 2013-08
IPX 9 is the test to simulate the water Jets caused from heavy rain and high pressure cleaning.
| Test Name | Brief Description | Test Means | Water Flow Rate | Duration |
| IPX9 | Protected against high pressure and temperature water jets | Fan Jet NozzleTest of small enclosure on Turntable of speed (5 ± 1) r/min Spray at 0°, 30°, 60°, 90° | (15 ± 1) l/min | 30 s per Position |

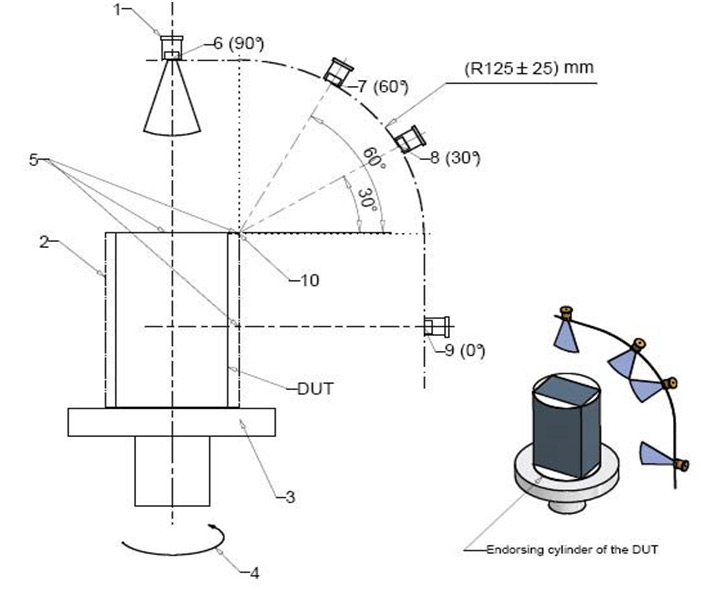

We have developed the adjustable IPX9 Nozzles with professionally designed structures in SS 304 material.
IP5 and IP6 Dust Ingress Test as per IEC 60529 Edition 2.2 2013-08
IP5and IP6 are the tests to simulate the Dust environment with or without pressure difference.
| Test Name | Brief Description | Test Means | Dust Concentration | Duration |
| IP5 | Protected against Dust particles, which will not affect the functionality | Dust Chamber with dust added with air in a non laminar flow condition | 2kg/m3 | 2hour or 8 hour |
| IP6 | Protected against Dust particles inside the product | Dust Chamber with dust added with air in a non laminar flow condition | 2kg/m3 | 8 hour |

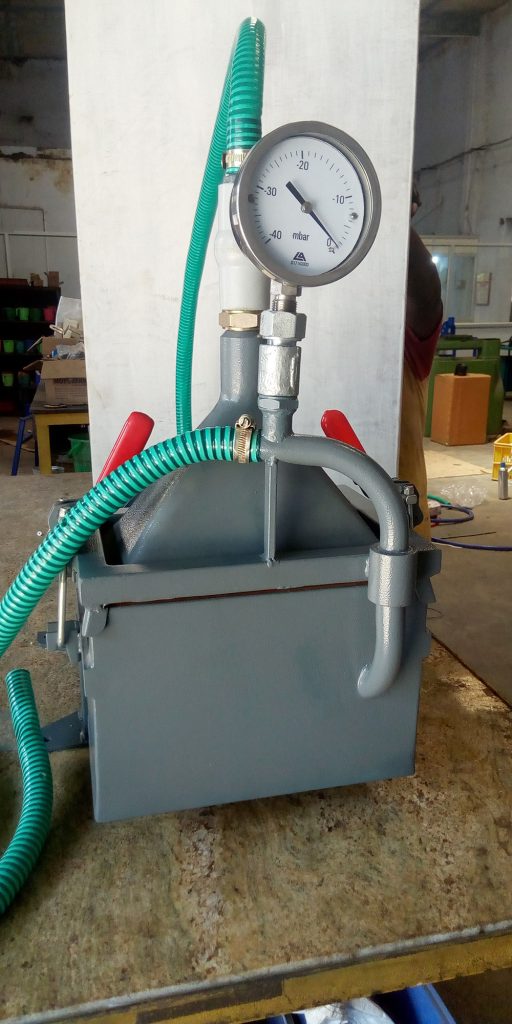

We have developed the Dust Chamber with a professionally designed structures, Blower, Door Gasket mechanism in Mild Steel Tubular structure with powder coating and SS 304 sheets in working zones. Our standard Inner size is 1 cubic meter and can be customized for any sizes.
